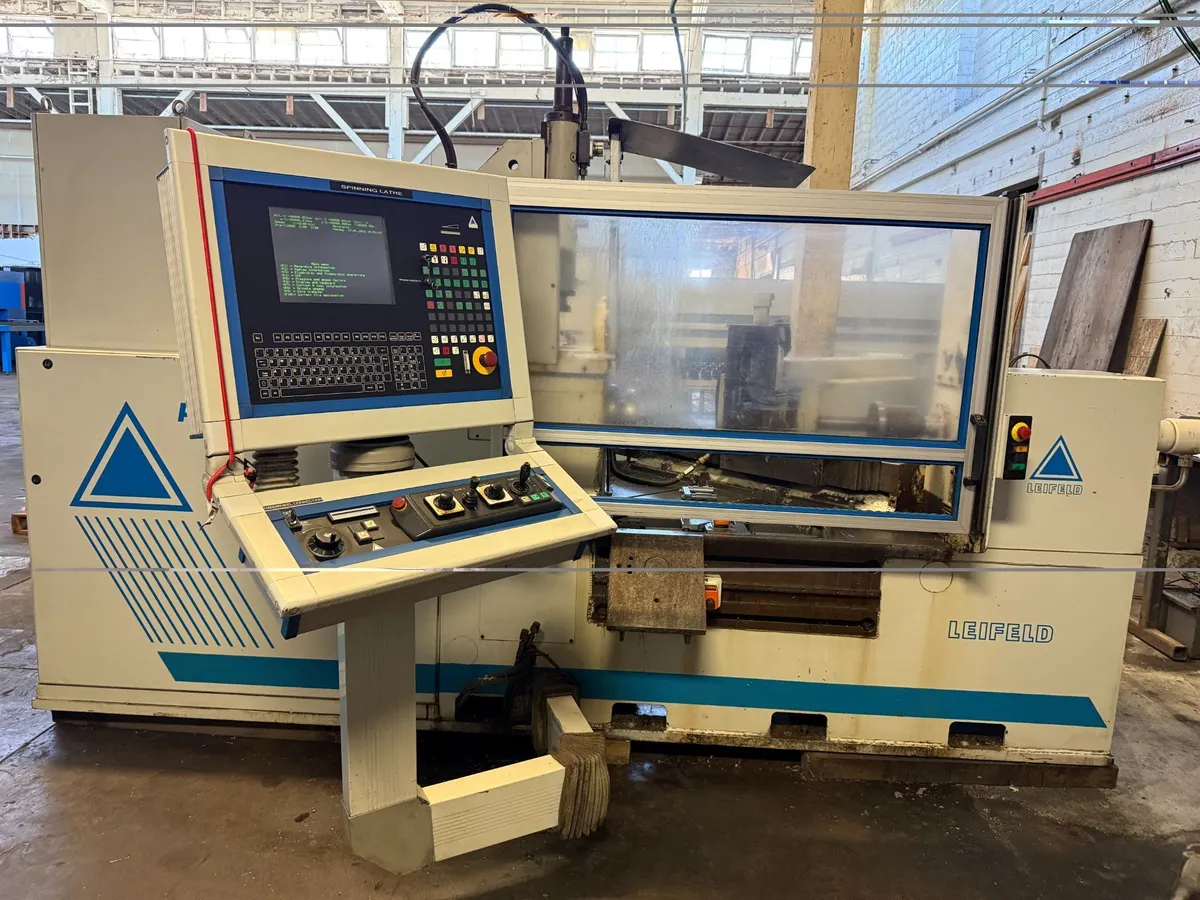

LEIFELD PNC 106 SPINNING LATHE

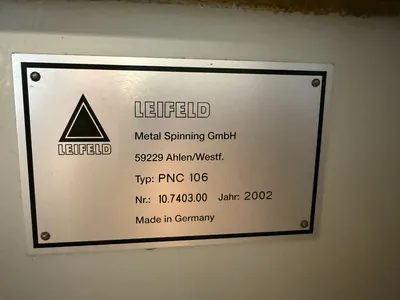

MAKE: LEIFELD
MDL: PNC 106
S/N: 10.7403.00
YR: 2002

WORKPIECE DIMENSIONS-
OUTSIDE DIAMETER MAX.: 700 MM

MACHINE DATA-
DISTANCE BETWEEN CENTERS: 800 MM
BED LENGHT: 3550 MM
LONGITUDINAL SLIDE TRAVEL, AXIS Z: 400 MM
TRANSVERSE SLIDE TRAVEL, AXIS X: 250 MM
FEED POWER, AXIS Z: 15 KN
FEED POWER, AXIS X: 15 KN
WORKING FEEDRATE, MAX: 10.0 M/MIN
EJECT STROKE: 200 MM
ADVANCE FEED RATES: 12.0 M/MIN
RETURN FEED RATES: 13.0 M.MIN
EJECT STROKE: 10 KN

TAILSTOCK, SLEEVE STOKE: 400 MM
ADVANCE FEED RATES: 13.0 M/MIN
RETURN FEED RATES: 22.0 M/MIN
TAILSTOCK CLAMING POWER: 10 KN

SPINDLE SPEED: 300 - 3,800 RPM
TOOL MOUNTING AT MAIN SPINDLE ACC. TO DIN 55027: SIZE 6

MACHINE CONTROL-
PALYBACK CONTROL: PNC/CNC
MONITOR: 12.1" / COLOR

ELECTRICAL RATINGS-
VOLTAGE, 3-PHASE: 480 VAC
PNC/CNC VOLTAGE: 230 VACCO
CONTROL VOLTAGE 1: 115 VAC
CONTROL VOLTAGE 2: 24 VDC
MOTOR: 25 HP

DIMENSIONS: 16'L, X 8'W, X 8'H
WEIGHT: 15,000 LBS

PRICE: $59,500.00

LOCATIONS: SANTA PAULA, CA

***SPECIFICATION SHOWN ARE TO BE USED
AS A GUIDELINE ONLY. IT IS THE CUSTOMERS
RESPONSIBILITY TO CHECK FOR SIZE AND FEATURES
BEFORE PURCHASING WE WILL NOT BE RESPONSIBLE
FOR ERROR OR OMISSIONS.
