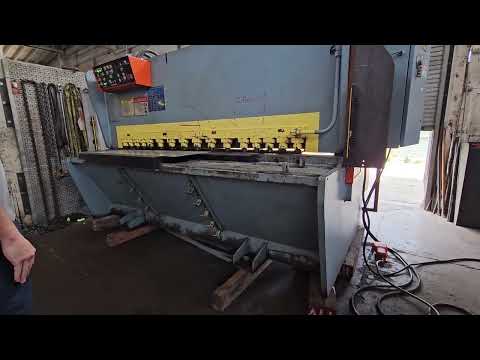

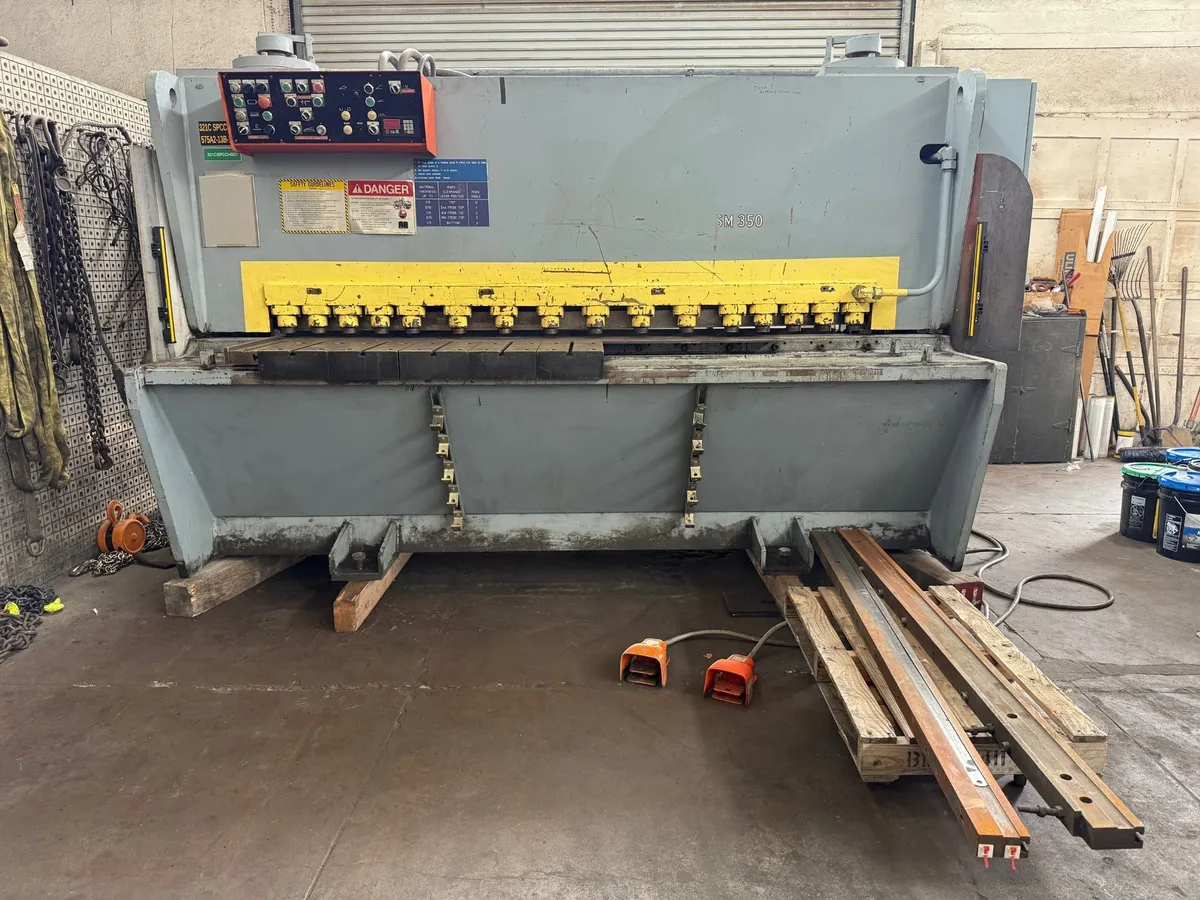

1/2" X 8' ATLANTIC HDG8X1/2 HYDRAULIC GAP SHEAR

MAKE: ATLANTIC
MDL: HDG8X1/2
Y/R: 1986
S/N: 60234
CAP: 8X 1/2
MACHINE CONTROLS DUAL VOLTAGE
MAIN MOTOR SINGLE VOLTAGE 480 3-PHASE

42" TRAVEL BACK GAUGE
ADJUSTABLE RACK ANGLE (ALLOWS CLEAN CUTS FROM 1/8" - 1/2" THICKNESS)
HYDRAULIC HOLDOWNS
FRONT SQUARING ARMS
PROGRAMMABLE BACK GAUGE
SAFETY LIGHT FENCE

LENGTH OF CUT: 98"
CAPACITY OF CUT (MILD STEEL, 50,000 PSI) 1/2"
LENGTH DEPTH: MAXIMUM: 39"
MINIMUM: 1"
HYDRAULIC OIL CAPACITY: 110 GAL.
TYPE: MOBILE DTE 24 OR EQUIVALENT
HYDRAULIC PRESSURE AT HOLDDOWS: 1500 PSI
HYDRAULIC PRESSURE AT SHEAR CYLINDERS: 4000 PSI

MACHINE DIMS: 12'L, X 7'-2"W, X 7'-6"H
APPROX WEIGHT: 30,000 LBS

PRICE: $12,500.00

LOCATIONS: SANTA PAULA, CA 93060

***SPECIFICATION SHOWN ARE TO BE USED AS A GUIDELINE ONLY. IT IS
THE CUSTOMERS RESPONSIBILITY TO CHECK FOR SIZE AND FEATURES
BEFORE PURCHASING. WE WILL NPT BE RESPONSIBLE FOR ERROR OR
OMISSIONS.***
