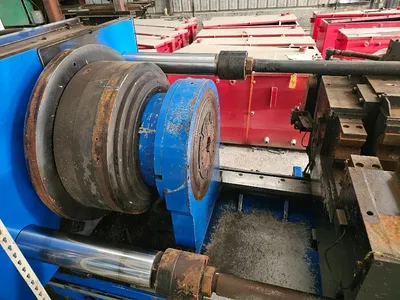

MTI 250BX 100 TON 150HP INERTIA FRICTION WELDER

MAKE: MTI
MDL: 250BX
S/N: 25XHLF3154
YR: 2006
100 TON
CONTROL: CYRAQ 19
MAXIMUM THRUST: 200,000 LB
MAXIMUM SPINDLE SPEEDS: 2,000 RPM
SPINDLE DRAWBAR FORCE: 15,000 LB
SPINDLE DRAWER TRAVEL: 0.50"
460V, 3-PH, 150 HP
TAILSTOCK TRAVEL DISTANCE: 25"
SLIDE TABLE TO SPINDLE CENTERLINE: 19"
MACHINE DIMS: 16'L, X 9'W, X 7'H
MACHINE WEIGHT: 39,300 LBS

PRICE: $199,500.00

AVAILABLE WITH HEATING INDUCTION AT EXTRA COST:

Manufacturer: Heating Induction Services Inc.
Model: HIS Ultra-Match III
Year: 2008
Serial number: 888217
kW: 150 kW
kHz: 1 kHz
Supply voltage: 480 / 3phase

***SPECIFICATION SHOWN ARE TO BE
USED AS A GUIDELINE ONLY. IT IS
THE CUSTOMER RESPONSIBILITY TO
CHECK FOR SIZE AND FEATURES BEFORE
PURCHASING WE WILL NOT BE RESPONSIBLE
FOR ERROR OR OMISSIONS.
