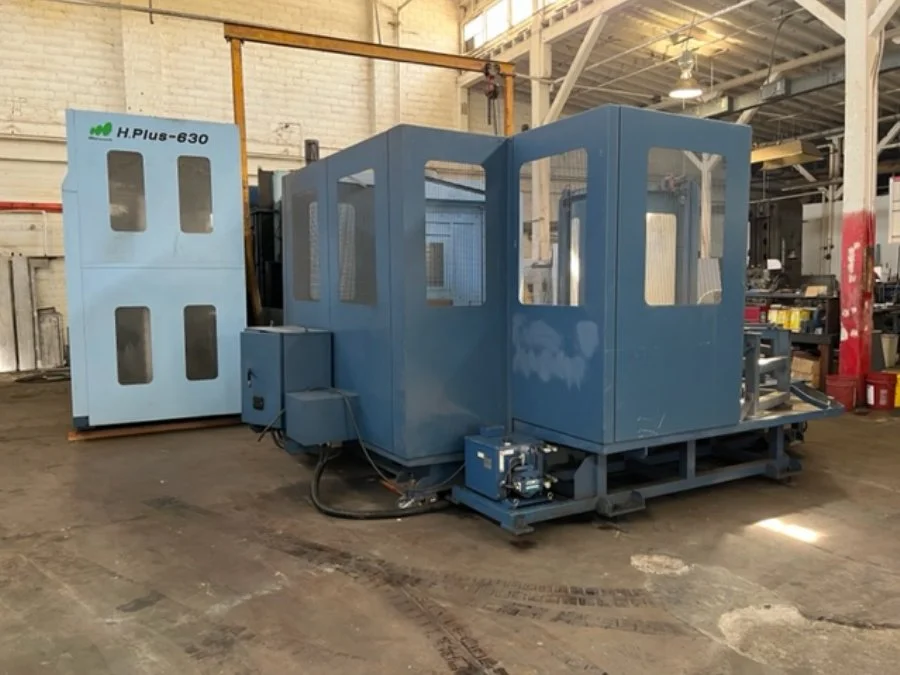

41"X, 36"Y, 38"Z MATSUURA H PLUS-630 CNC HMC W/G-TECH 30i 2007

Description

MAKE: MATSUURA
MDL: H PLUS-630
S/N: 16934
YR: 2007
CONTROL: G-TECH 30i

NUMBER OF AXIS: 4
PALLET SIZE: 24.8" X 24.8"
PALLET CAPACITY: 2,640 LBS

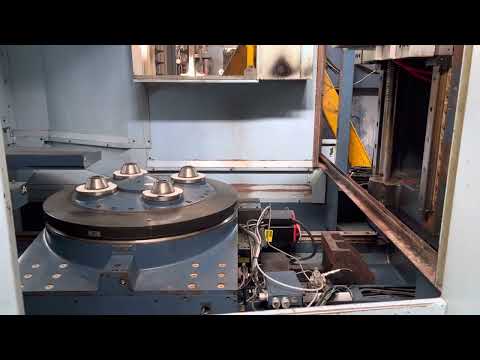

PALLET INDEXING (B-AXIS): FULL 4TH
X-AXIS TRAVEL: 41.33"
Y-AXIS TRAVEL: 36.22"
Z-AXIS TRAVEL: 38.97"
X-AXIS RAPID FEEDRATE: 1968 IPM
Y-AXIS RAPID FEEDRATE: 1968 IPM
Z-AXIS RAPID FEEDRATE: 1968 IPM
SPINDLE SPEEDS: 12,000 RPM
240 VOLT, 3-PHASE
SPINDLE TAPER: CAT 50
MAIN MOTOR: 40HP
TOOL CHANGER CAPACITY: 120

EQUIPPED WITH:
FULL 4TH AXIS WITH IDOCTOSYN@ SCALES
2 PALLET SHUTTLE MACHINING WITH INDEPENDENT 6 PALLET POOL

AVAILABLE EITHER WAY
OVERHEAD COOLANT FLUSH SYSTEM
HI-PRESSURE COOLANT THRU SPINDLE
CHIP BLASTER
INTERNAL SPIRAL CONVEYOR
LIFT-UP CONVEYOR
APPROX 90 TOOLHOLDERS

***PURCHASED THROUGHT AN INSURANCE COMPANY.

***MINOR DAMAGE FROM MAGNESIUM FIRE, REPAIRED AND RUNNING ON OUR FLOOR.

***COVERS OFF FOR INSPECTION

PRICE: $59,500.00 AS 2 PALLET MACHINE

PRICE: $62,500.00 AS 6 PALLET POOL MACHINE WITH 7 PALLETS

THIS MACHINE IS LOCATED IN: SANTA PAULA

***SPECIFICATION SHOWN ARE TO BE USED AS A
GUIDELINE ONLY. IT IS THE CUSTOMERS RESPONSIBILITY
TO CHECK FOR SIZE AND FEATURES BEFORE PURCHASING.
WE WILL NOT BE RESPONSIBLE FOR ERROR OR OMISSIONS.
