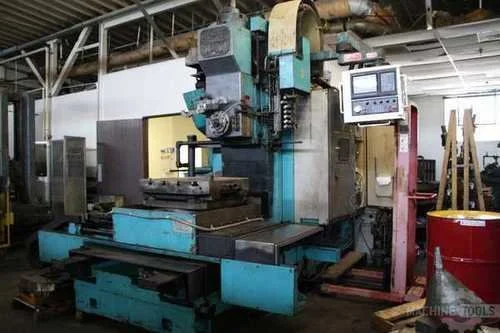

MAZAK POWER CENTER H-20 HORIZONTAL CNC MACHINING CENTER WITH NEW HUST CONTOL

MAKE: MAKAK
MDL: POWER CENTER H-20
YR: 1986/2010 ELECTRONICS
CONTROL: HUST H4CL-M

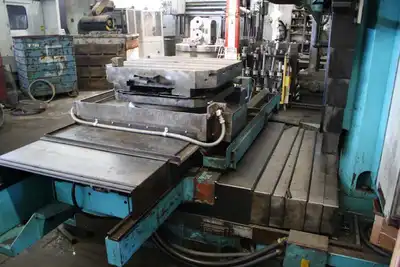

PALLET SIZE (2): 31.5"SQ
PALLET LOAD CAPACITY: 2,220 LBS
SPINDLE CENTER LINE TO PALLET TOP: 0"-34"
SPINDLE NOSE TO TABLE CENTERLINE: 2"-36"
HEIGHT OF PALLET TOP FROM FLOOR: 45.3"
X-43.3"
Y-33.4"
Z-29.5"
RAPID TRAVERSE RATES (ALL AXES): 1000 IPM
SPINDLE NOSE: ISO N.T. 50
MAIN MOTOR DRIVE: DC 20HP
SPINDLE SPEED RANGE:-STANDARD: 14-2000 RPM
-HIGH: 22-3150 RPM
SPINDLE SPEED SELECTION: DIRECT RPM PROGRAMMING
WITH 4 DIGIT S WORDS
(IN TWO GEAR-SELECTED RANGES)

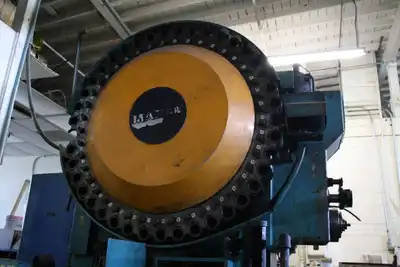

TYPE OF TOOL CHANGE ARM: DOUBLE-ENDED ARM
DRIVE SYSTEM: HYD. OPERATED
TOOL CHANGING TIME: 6 SECONDS
NUMBER OF STATIONS: 30
MAX TOOL DIAMETER: 9.4"
MAX TOOL WEIGHT: 44.1 LBS
MAX TOOL LENGTH: 17.7"

MACHINE DIMS: 141"L, X 146"W, X 130"H
APPOX. WEIGHT: 35,000 LBS

PRICE: $19,500.00

***SPECIFICATION SHOWN ARE TO BE
USED AS A GUIDELINE. IT IS THE
CUSTOMERS REPSONSIBLE TO CHECK
FOR SIZE AND FEATURES BEFORE
PURCHASING. WE WILL NOT BE
RESPONSIBLE FOR ERROR OR OMISSIONS.
