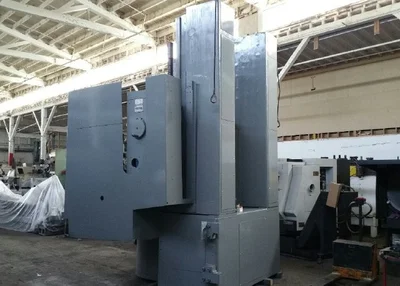

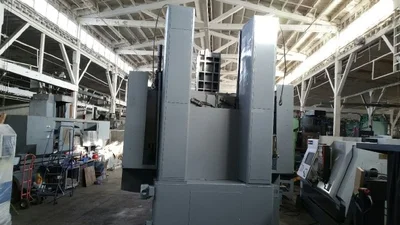

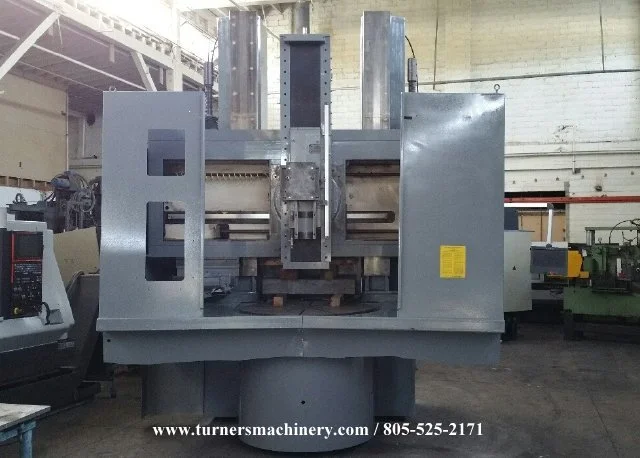

SPRINGFIELD 48ESR VERTICAL GRINDER

MAKE:.................................. SPRINGFIELD
MDL: .................................. 48ERS
S/N: .................................. S-2941590
YR: .................................. 1990
DIAMETER:.............................. 48"
MAX SWING:............................. 60"
HEIGHT UNDER RAIL:..................... 72"
HEIGHT UNDER GRINDING SADDLE:.......... 66"
TABLE SPEEDS:.......................... 5-100 RPM
WHEEL SPINDLE &
GRINDING HEAD STROKE ...... 42"

MACHINE DIMS: 126"LR, X 99"FB, 160"H
APPROX WEIGHT: 45,000 LBS

AS RETROFIT FRAME, NEW TOLERANCE GUARANTEE $49,500.00

RETROFIT COMPLETE NEW FANUC CONTROL, DRIVES & MOTORS $179,500

***SPECIFICATION SHOWN ARE TO BE
USED AS A GUIDELINE ONLY. IT IS
THE CUSTOMERS RESPONSIBILITY TO
CHECK FOR SIZE AND FEATURES BEFORE
PURCHASING. WE WILL NOT BE RESPONSIBLE
FOR ERROR OR OMISSIONS.
