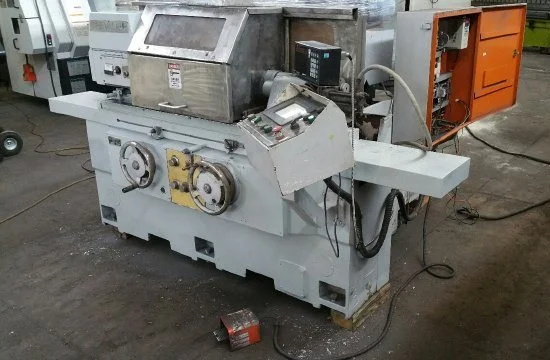

12" X 24" CHEVALIER CG-1224-A CYLINDRICAL GRINDER

MAKE: CHEVALIER
MDL: CG-1224-A
S/N: GF-30005
SWING OVER BED: 12.59"
CENTERS: 24"
SPINDLE SPEED: 350 RPM
SWIVEL HEAD: 90 DEGREES
SPINDLE CENTER: MT4
TABLE SPEED: 2-155 RPM
TABLE HANDWHEEL, PER REVOLUTION: 0.5"
TABLE SWIVEL ANGLE: 9 DEGREES
TABLE MINIMUM TRAVERSE LENGTH: 0.03"
GRINDING WHEEL SIZE: 16" X 2" X 5"
GRINDING WHEEL SPEED: 1650 RPM
MAXIMUM PERIPHERY SPEED: 6480 FPM
MAXIMUM INFEED TRAVEL: 9.64"
RAPID ADVANCE & RETRACT MAX TRAVEL: 1.77"
MAXIMUM GRINDING WHEEL TRAVEL: 7.87"
WHEELHEAD MAXIMUM SWIVEL: 30 DEGREES
INFEED HANDWHEEL PER REVOLUTION: DIA. 0.1"
INFEED HANDWHEEL PER GRADUATION: DAI. 0.0005"
QUILL TRAVEL: 1"
WHEELHEAD MOTOR: 5HP
WORKHEAD MOTOR: 2HP
HYDRAULIC MOTOR: 2HP
COOLANT PUMP MOTOR: 1/4HP
RATED POWER: 10HP

***MISSING COOLANT PUMP

MACHINE DIMENSIONS: 97"L, X 73"W, X 75"H
APPROX WEIGHT: 6600 LBS

PRICE: $11500.00

SPECIFICATION SHOWN ABOVE ARE TO BE USED
AS A GUIDELINE ONLY. IT IS THE CUSTOMERS
REPONSIBLITY TO CHECK SIZES AND FEATURES
BEFORE PURCHASING. WE WILL NOT BE RESPONSIBLE
FOR ERROR OR OMISSIONS.
