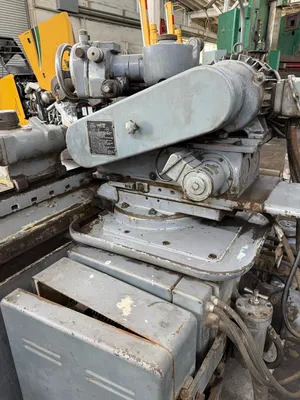

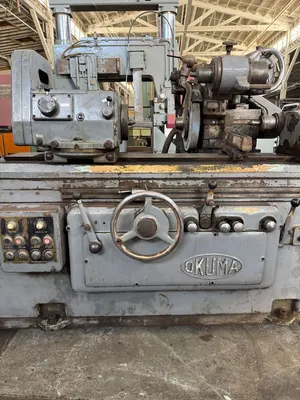

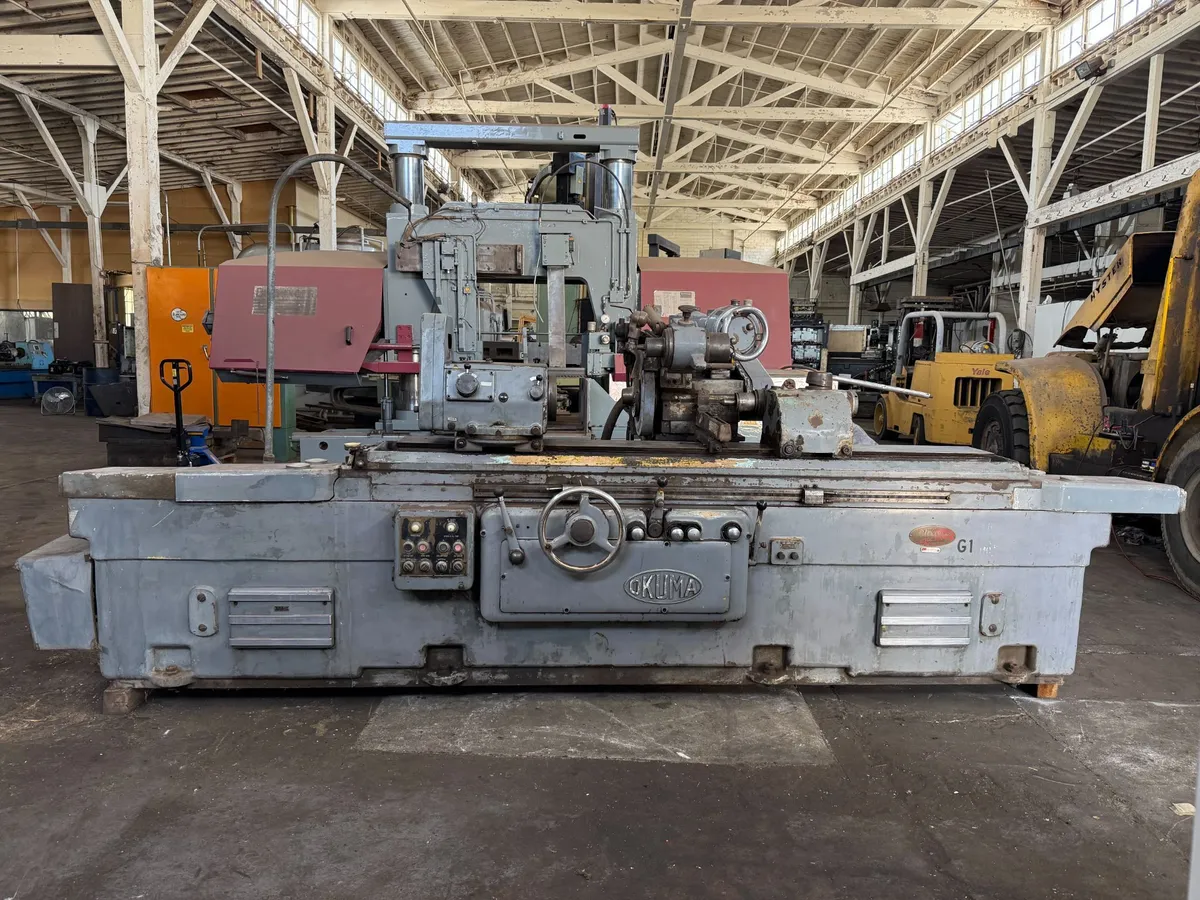

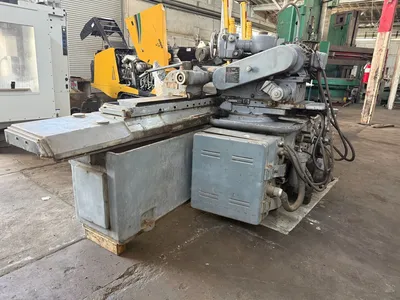

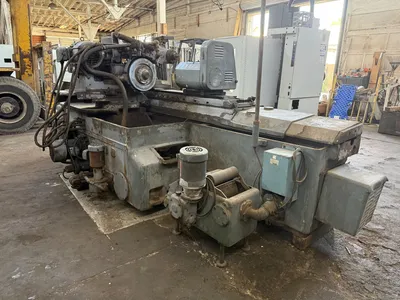

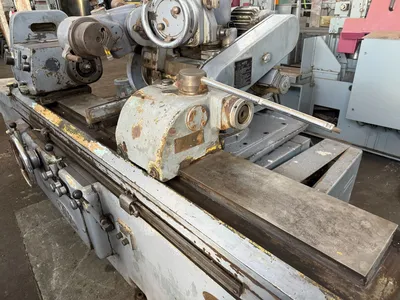

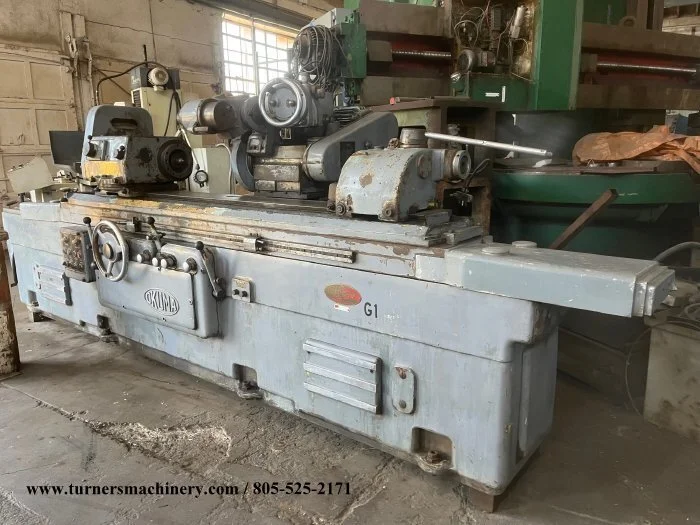

16.9" X 80" OKUMA GCU UNIVERSAL CYLINDRICAL GRINDER

MAKE: OKUMA
TYPE: GCU
S/N: 4403-2879
SWING OVER TABLE, MAX: 16.9"
MAX DISTANCE BETWEEN CENTERS: 80.4"
GRINDING DIA W/14" WHEEL: 16.5"
WEIGHT CAPACITY BETWEEN CENTERS: 1100 LBS
GRINDING WHEEL DIAMETER, MINIMUM: 10.8"
GRINDING DIAMETER, STANDARD: 14"
GRINDING WHEEL WIDTH, STANDARD: 1.25"
GRINDING WHEEL WIDTH, MAXIMUM: 3"
GRINDING WHEEL HOLE DIAMETER: 6"
TABLE SWIVEL ADJUSTMENTS, MAXIMUM: 5-DEG- 20-MIN
HEAD SWIVEL ADJUSTMENT, MAXIMUM: 90-DEGREES
GRINDING WHEEL SLIDE SWIVEL ON BASE: 90-DEGREES
TAILSTOCK CENTER TAPER: #5 MORSE
WORKHEAD CENTER TAPER: #5 MORSE
GRINDING WHEEL SPEEDS, RANGE: 1500 & 1800 RPM
WORKHEAD SPINDLE SPEED, RANGE: 10 TO 150 RPM
TABLE LONGITUDINAL; FEEDS, RANGE: 2 TO 144 IPM

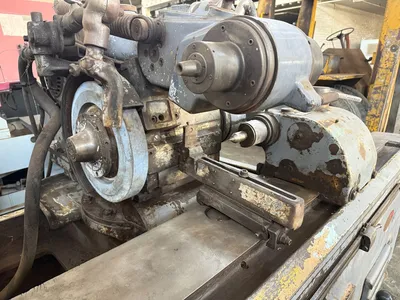

-SWING DOWN INTERNAL ATTACHMENT MOTORIZED SPINDLE
-INCREMENTAL INFEED
-TERRY BOTH ENDS

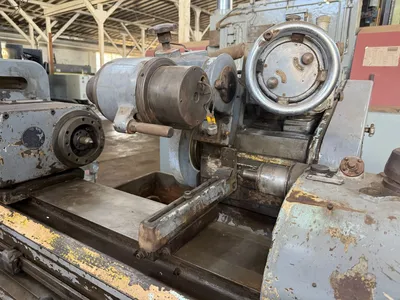

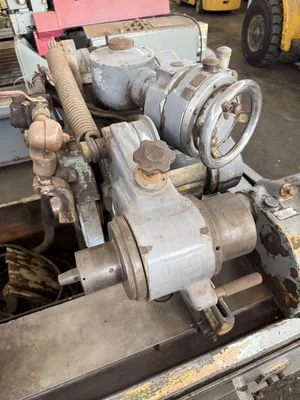

-UNIVERSAL WORK HEAD
-LIVE OR DEAD CENTER WORK HEAD

DIMENSIONS: 204"L, X 90"W, X 60"H
APPROX. WEIGHT: 15,140 LBS

***CONDITION: EXCELLENT RUNNING CONDITION, WILL HOLD TOLARANCE.

FOB:SANTA PAULA, CA

PRICE: $12500.00

**SPECIFICATION SHOWN ARE TO BE USED
AS A GUIDELINE ONLY. IT IS THE
CUSTOMERS RESPONSIBILITY TO CHECK
SIZES AND FEATURES BEFORE PURCHASING.
WE WILL NOT BE RESPONSIBLE FOR ERROR
OR OMISSIONS.
