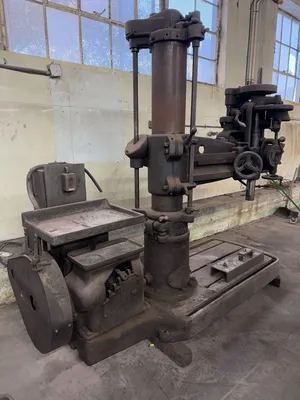

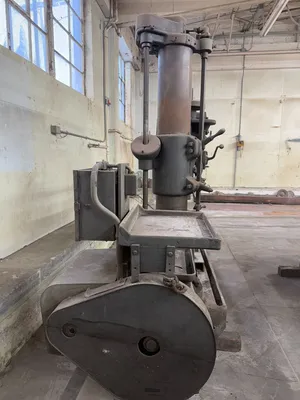

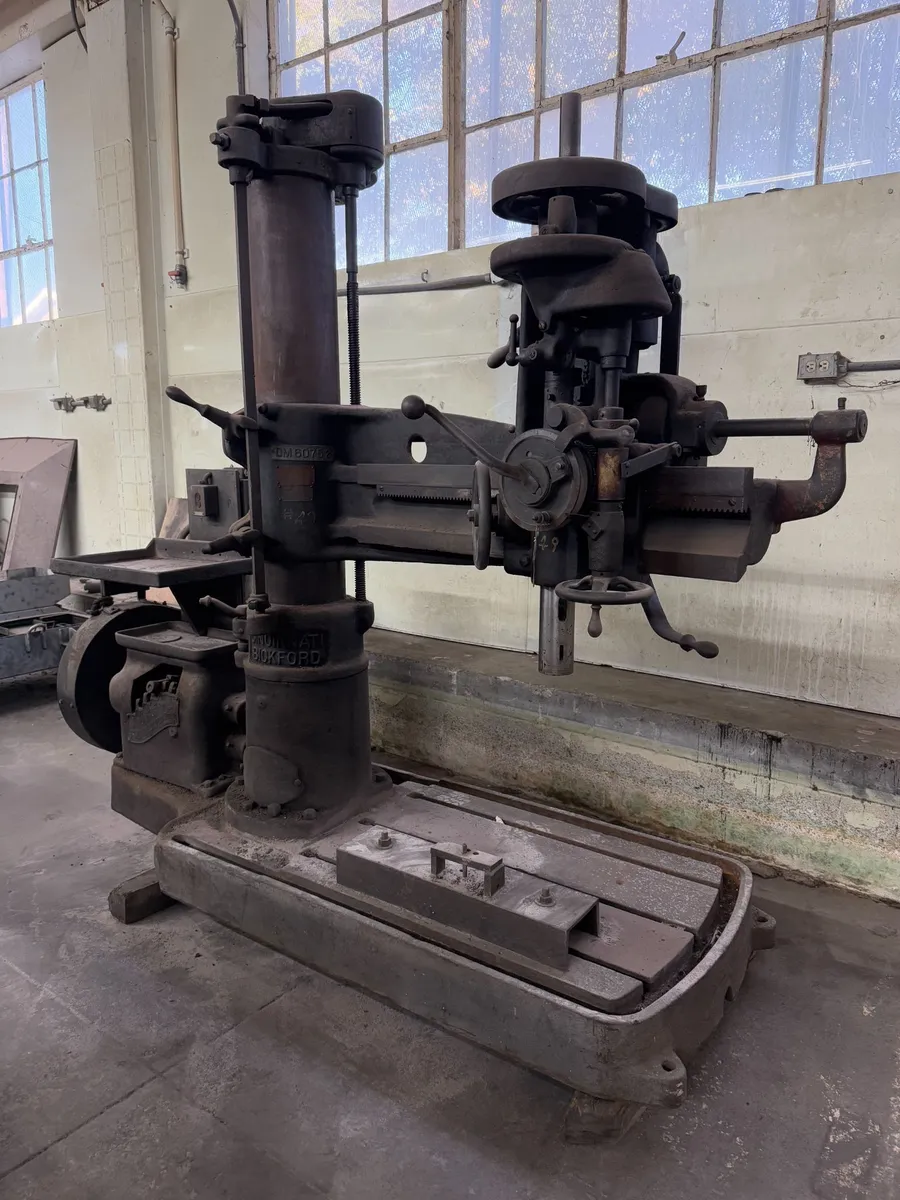

CINCINNATI BICKFORD 3A RADIAL ARM DRILL

MAKE: BICKFORD
MODEL: 3A

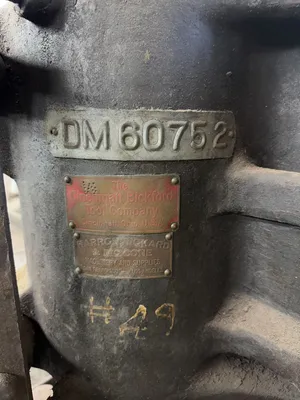

SERIAL NUMBER: 2288
YEAR: 1920'S
DIAMETER OF COLUMN: 9"
MAX. DIST. COLUMN TO SPDL. CENTER: 36"
TRAVEL OF SPINDLE HEAD: 25"
STROKE OF SPINDLE: 11"
MORSE TAPER: 6MT
3HP, 440/3/60
RPM: 1200
SPEEDS: 8 (APPROX 10-400)
POWER FEED
REVERSING CLUTCH

DIMS: 100"L, X 50"W, X 84"H
APPROX WEIGHT: 3000 LBS

TERMS: NET CASH WITH ORDER
PRICE: $1250.00

***SPECIFICATION SHOWN ARE TO BE USED AS A GUIDELINE ONLY. IT IS THE
CUSTOMERS RESPONSIBILITY TO CHECK FOR SIZE AND FEATURES BEFORE
PURCHASING. WE WILL NOT BE RESPONSIBLE FOR ERROR OR OMISSIONS.****
